P4 Indoor RGB LED Module with 4mm Pixel Pitch and 1200cd Brightness for High-Quality Video Walls

P4 Indoor RGB LED Module with 4mm Pixel Pitch and 1200cd Brightness for High-Quality Video Walls

  • P4 Indoor RGB LED Module with 4mm Pixel Pitch and 1200cd Brightness for High-Quality Video Walls
  • P4 Indoor RGB LED Module with 4mm Pixel Pitch and 1200cd Brightness for High-Quality Video Walls
  • P4 Indoor RGB LED Module with 4mm Pixel Pitch and 1200cd Brightness for High-Quality Video Walls
  • P4 Indoor RGB LED Module with 4mm Pixel Pitch and 1200cd Brightness for High-Quality Video Walls
  • P4 Indoor RGB LED Module with 4mm Pixel Pitch and 1200cd Brightness for High-Quality Video Walls
  • P4 Indoor RGB LED Module with 4mm Pixel Pitch and 1200cd Brightness for High-Quality Video Walls
P4 Indoor RGB LED Module with 4mm Pixel Pitch and 1200cd Brightness for High-Quality Video Walls
Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: KAILITE
Nomor model: P4
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: $7.80-9
Kontak
Detil Deskripsi produk
Pitch piksel: 4mm Ukuran modul: 256mm × 128mm
Tipe LED: SMD2121 Resolusi Modul: 64×32
Daya Input: 5VDC Kekuatan modul: 20W
Jarak melihat: ≥4m Metode mengemudi: 1/16 Pemindaian
Kecerahan: ≥1200cd Tingkat Refresh: ≥1200Hz
Suhu operasi: -30 ℃ ~+60 ℃ Lihat sudut: H: 140°; V:140°
Fungsi tampilan: video Warna chip tabung: Warna penuh
Catu daya: 5VDC
Menyoroti:

P4 RGB LED Module

,

4mm Pixel Pitch LED Video Wall Module

,

1200cd Brightness Full Color Display Panel

64x32 Indoor P4 LED Module - High Quality Full Color Display Panel
P4 Indoor RGB LED Module with 4mm Pixel Pitch and 1200cd Brightness for High-Quality Video Walls 0 P4 Indoor RGB LED Module with 4mm Pixel Pitch and 1200cd Brightness for High-Quality Video Walls 1 P4 Indoor RGB LED Module with 4mm Pixel Pitch and 1200cd Brightness for High-Quality Video Walls 2
Technical Specifications
Item P4 Indoor LED Modules
Pixel pitch 4mm

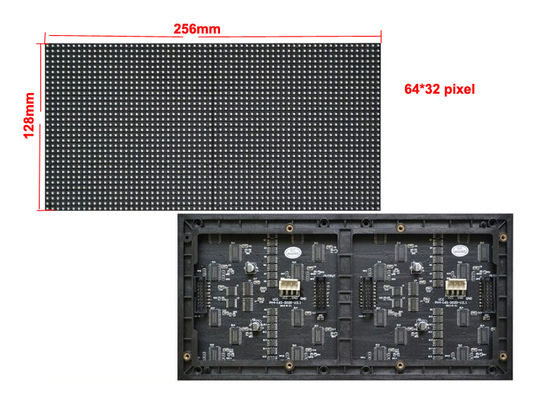

Size 256mm×128mm
LED type SMD2121
Color Full color
Module Resolution 64×32
Input power 5VDC
Module power 20W
Recommended viewing distance ≥4m
Driving method 1/16 scan
Brightness ≥1200cd
Refresh rate ≥1200Hz (customizable)
Operating temperature -30℃~+60℃
View angle H: 140°; V:140°
Why Choose Our LED Modules
  • 11 years manufacturing experience with stable, guaranteed quality
  • 9000 square meters production capacity with guaranteed lead times
  • Strict quality control process ensures superior product reliability
  • Dedicated 24/7 sales and technical support team
  • Comprehensive project solutions and technical support
  • Continuous investment in new product development
  • Competitive pricing without compromising quality
Quality Control Process
  • Stable quality raw materials from long-term suppliers
  • 12-hour baking process at 65℃ before production
  • Full automated production lines for uniform quality
  • QC inspections at every production stage
  • Minimum 90 hours aging tests for all modules
  • 8 comprehensive tests before packing
  • Customized packaging with desiccants
Packaging & Production
P4 Indoor RGB LED Module with 4mm Pixel Pitch and 1200cd Brightness for High-Quality Video Walls 3 P4 Indoor RGB LED Module with 4mm Pixel Pitch and 1200cd Brightness for High-Quality Video Walls 4 P4 Indoor RGB LED Module with 4mm Pixel Pitch and 1200cd Brightness for High-Quality Video Walls 5
Frequently Asked Questions
Are you a factory or trading company?
We are a factory with 8000 square meters production facility and welcome visits.
What other models do you offer?
We provide a full range of indoor (P1.2-P10) and outdoor (P3-P10) LED modules.
How do I choose the right pixel pitch?
This depends on viewing distance and screen size - our team can advise you.
What is your warranty policy?
We offer 2-year warranty with lifetime maintenance support.
Can I order samples?
Yes, we welcome sample orders to evaluate our product quality.
Application Cases
P4 Indoor RGB LED Module with 4mm Pixel Pitch and 1200cd Brightness for High-Quality Video Walls 6 P4 Indoor RGB LED Module with 4mm Pixel Pitch and 1200cd Brightness for High-Quality Video Walls 7
