Super Slim Advertising Outdoor SMD Led Display RGB High Brightness 6mm Pixel Pitch

kualitas baik smd layar dipimpin untuk penjualan
kualitas baik smd layar dipimpin untuk penjualan
This is my third time doing business with them, The quality of their led screen is very stable, and have a intimate after service!

—— Nick

I am mykola from Romania. doing business with them is just no worries. they are very considerate, this is what i am always finding

—— Mykola

I 'm Online Chat Now

Super Slim Advertising Outdoor SMD Led Display RGB High Brightness 6mm Pixel Pitch

Cina Super Slim Advertising Outdoor SMD Led Display RGB High Brightness 6mm Pixel Pitch pemasok
Super Slim Advertising Outdoor SMD Led Display RGB High Brightness 6mm Pixel Pitch pemasok Super Slim Advertising Outdoor SMD Led Display RGB High Brightness 6mm Pixel Pitch pemasok

Gambar besar :  Super Slim Advertising Outdoor SMD Led Display RGB High Brightness 6mm Pixel Pitch

Detail produk:

Place of Origin: Shenzhen, China(mainland)
Nama merek: OEM/ODM
Sertifikasi: CE,FCC,ROHS ISO9001
Model Number: P6

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 2 suqare meter
Harga: Negotiation
Packaging Details: wooden case/ flight case packing
Delivery Time: 5--20 working days
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 8000sqm per month
Contact Now
Detil Deskripsi produk
Usage: outdoor Life span: 100,000hours
LED chip: Kinglight Warranty: 2 Years





Super Slim Advertising Outdoor SMD Led Display RGB High Brightness 6mm Pixel Pitch

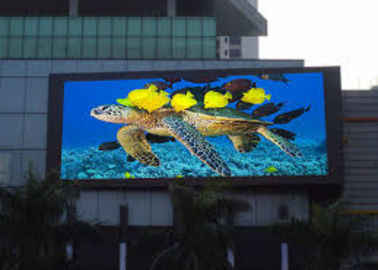

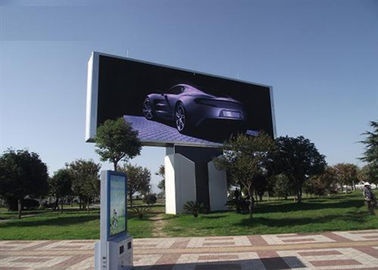

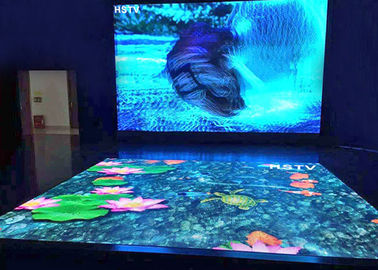

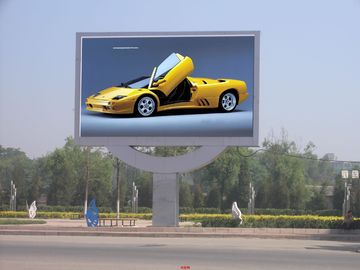

Application of LED display screen:



LED display,also called led screen, led video wall, or led sign, with its unique advantages,has gradually replaced the traditional billboards, light boxes,etc. LED display advertising has become a new force in the media industry.



Traditional advertising can only show pictures, But LED display / led video wall / led screen can perfect combine text, pictures, video, and sound with high resolution,high brightness and full color! LED display Advertising screen can easily attract the attention of pedestrians,and also are easy to remember,which can generate greater advertising effectiveness.



Led display screen now are widely applied in media advertising, transportantion,Security,

Real estate and Stage show background.



Technogical Parameter:





Pixel Pitch: 6 mm



Pixel Configuration 1R1G1B



LED Encapsulation Method: DIP and SMD



Module Resolution: 32dots*32dots



Module Size: 192mm*192mm



Module Weight: 2 KG



Power Consumption Max.: 550W/m2 Average: 180-360W/m2



Brightness 6500-7000cd/m2



Driving Method 1/8 Scan Real image pixel



Control Mode: Video frequency synchronization



Optimal Viewing Distance ≥6m



Gray Scale Recommended 4096 level



Refresh Frame Frequency ≥300Hz



Blind Spot Rate <0.0001



Brightness Control 256 Grade



Contrast 100 levels adjustable



Effective Control Distance(without relay) Unshielded Twisted-Pair net line transmission distance 100M



View Angle Horizontal ≤120° Vertical ≤50°



Earth Leakage Current <2mA



MTBF >5000Hours



Lifespan >100000Hours



Power Supply Mode AC220V/50HZ or AC110V/60HZ



Protection Level Front IP65 Back IP55



Humidity 10%~90%



Operating System Windows98/me/2000/NT/XP



Operation Environment Temperature Storage: –40°C~+60° Coperation: – 20°C~+45°C







FAQ



Q1: What's the warranty of your LED Display Screen ?

A1: We have a 2-year warranty for our led display screen, and 100,000 hours life span of the led lamps.


Q2: What about your pre-sale service and post-sale service?

A2: For pre-sale service: We have a professional sales team and a 12 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!



For post-sale service: We can instruct you how to use, adjust the screens, and change the boken modules with spare parts.

Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time.



Q3: Whats your payment term? How long it takes to delivery?



A3: We accept T/T. At least 30% deposit in advance, and the rest 70% before delivery.



Our average Production time is 16 days, after receiving the deposit.

Q4: What's the control system?

A4: For synchronization control: We use Nova, Linsn Or Colorlight control system.

For asynchronous control: We use Onbon, or Xixun control system.


Q5: How can you ensure the led display product quality?

A5: We have each stardard process to make quality products.



Super Slim Advertising Outdoor SMD Led Display RGB High Brightness 6mm Pixel Pitch
